SENSE1 Sensor Kit
An OQS Sensor kit for installations connecting to an existing monitoring system or local display. Includes the OQS sensor and Configuration Pack.

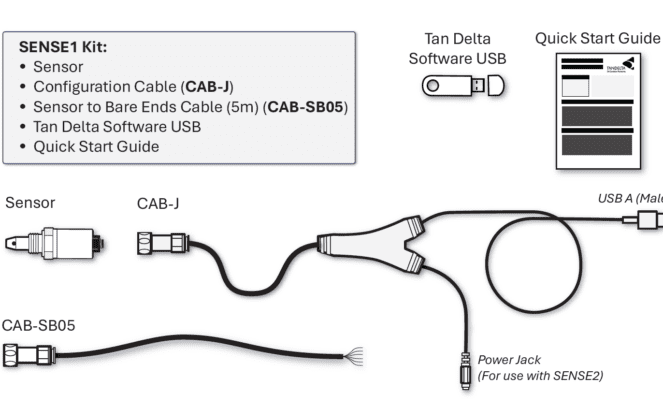

SENSE1 includes our OQS real time oil analysis sensor, and our CAB-J Configuration Cable and software which can be used to configure all Tan Delta sensors. This enables you to configure the sensor to the correct oil type and application and set the data output format that matches your target display.
OQS analyses oil in real time at a molecular level (0.001% accuracy), detecting, analysing and measuring changes caused by wear, contamination or mechanical issues with the equipment itself. This information enables you to significantly cut maintenance costs through using oil fully to the end of its life, undertaking maintenance when actually needed and reducing break downs.
Once you have configured the OQS to the target oil in your equipment, you can install and connect it to your desired display to see the oil analysis data. You can retain the Configuration Kit for future use and means that you only need buy the standalone OQS sensor in the future.
- REAL TIME OIL CONDITION ANALYSIS - continuously analyses and tracks oil condition in real time providing a simple to understand Tan Delta Number (TDN) scale.
- PREDICT MAINTENANCE: use the rate of change to easily and accurately predict oil end of life and safely extend intervals between maintenance according to equipment needs.
- SIMPLE & RELIABLE- easy to install and use with any equipment operating in any environment. Operates continuously with no maintenance required.
- REDUCED MAINTENANCE COSTS - trend analysis of oil condition change enables maintenance to be planned ahead of time at the optimal point, safely extending maintenance intervals. Typically reduces maintenance costs by between 30% and 50%.
- IMPROVED RELIABILITY - unseen issues cause subtle changes to oil condition that OQSx-G2 detects and alerts. Enables faults to be detected and fixed before failure, reducing costly break downs and extending equipment life.
- ESG TARGETS: - reduced oil consumption, spare part consumption, optimisation of equipment operating efficiency and extended productive equipment life all make a material and verifiable contribution to ESG targets.
Oil Interpreting Guide
Tan Delta technology continuously analyses oil in real time at a molecular level, accurately tracking condition changes as equipment operation causes oil to wear. Rate of change projection enables reliable optimal maintenance forecasting and safe interval increases – thus reduced costs. Contamination or equipment issues cause trend spikes which are instantly detected, enabling immediate evaluation and action as necessary to avoid unnecessary break downs and life-shortening equipment wear.
Technical specifications
| PRODUCT INFORMATION | |
|---|---|
| Name | Oil Quality Sensor |
| Product Number | SE1-OQS |
| PHYSICAL | |
|---|---|
| Material | Stainless Steel AISI304 |
| Dimensions | 102mm x 36mm (L x W) |
| Weight | 180g |
| Connection | 32mm AF Hex Collar |
| Torque | 25N m |
| AVAILABLE THREADS | |
|---|---|
| Thread | Seal |
| 1/2” BSPP | Dowty Type |
| 1/2” NPT | n/a |
| 7/8” UNF | ‘O’ Ring |
| M18 | Dowty Type |
(Alternative threads available upon request)
| CONNECTIONS | |
|---|---|
| Connector | 6 pin Bulgin 4000 series |
| ELECTRICAL | |
|---|---|
| Supply | +9-30 V DC |
| Consumption | 0.4w Average |
| DATA OUTPUT / INPUT | |
|---|---|
| Digital Output | RS485, CANbus |
| Protocols Supported | Modbus, CanOpen and J1939 |
| Analog Output | 4-20mA |
| OIL QUALITY DETECTION PARAMETERS | |
|---|---|
| Frequency | Every 2 seconds |
| Output | Tan Delta Number (TDN) Oil Temperature (ºC or ºF) |
| Accuracy | +/-0.5% |
| Elements | All wear and contamination |
| ENVIRONMENTAL | |
|---|---|
| Operating Temperature | -40ºC (-40ºF) to +120ºC (+248ºF) |
| Calibrated Temperature | -20ºC (-4ºF) to +120ºC (+248ºF) |
| Fluid Temperature | -40ºC (-40ºF) to +120ºC (+248ºF) |
| Fluid Pressure | up to 70 bar (1015 psi) |
| Storage Temperature | -55ºC (-67ºF) to +150ºC (+302ºF) |
| STANDARDS & CERTIFICATION | |
|---|---|
| Water & Dust | IP68 when connected |
| Shock & Vibration | BS EN 60068-2-30 (Test Db - Cyc.Hum.) BS EN 60068-2-6 (Test Fc - Sine Vib.) BS EN 60068-2-27 (Test Ea - Mech.Shock) |
| EMC | EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments) EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) |
| Conformity | CE Marked RoHS Compliant |
